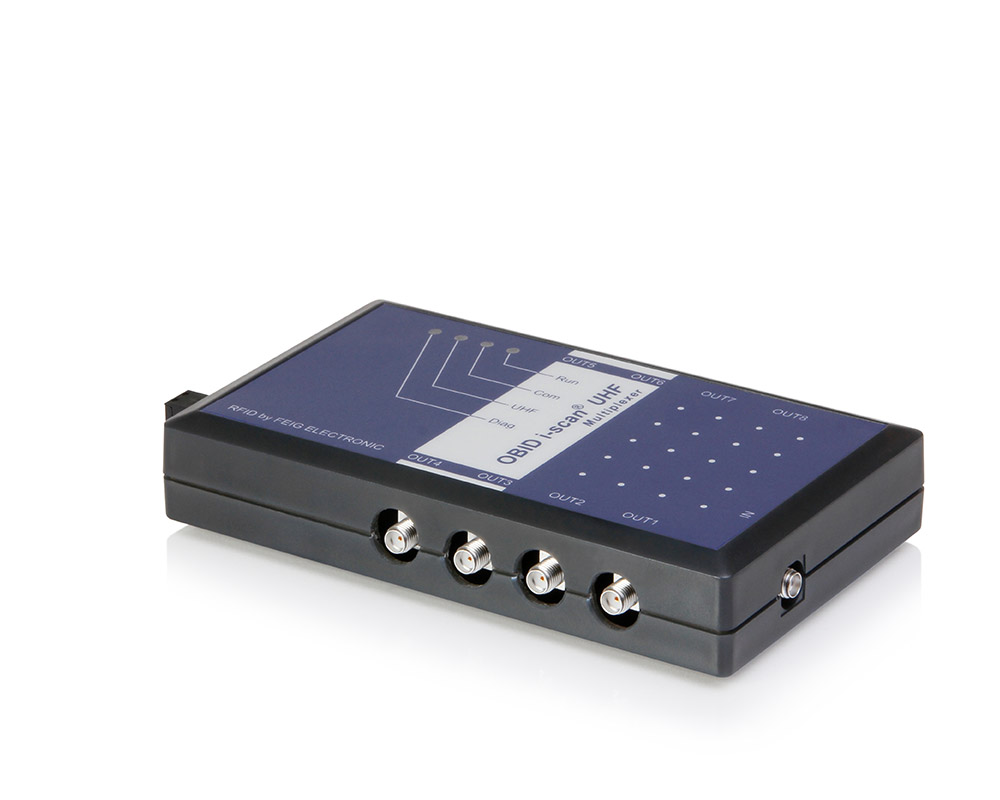

FEIG – ID ANT.UMUX
The UHF Antenna Multiplexer from FEIG is a versatile solution for connecting and controlling multiple antennas with a single reader. It allows for easy installation and communication via the antenna cable, eliminating the need for additional control lines. With a high switching speed and the ability to cascade up to three levels, this multiplexer is ideal for applications that require many small reading points in a confined space, such as smart shelves and logistics systems.
Specification
- Dimensions: 85 mm x 145 mm x 27 mm
- Weight: 170 g
- Housing: Plastic ABS
- Color: Black, transparent
- Protection class: IP30
- Operating frequency: 860 MHz to 960 MHz
- Supply voltage: 12 V DC to 24 V DC ±10%
- Power consumption: Max. 200 mA
- Insertion loss: Max. 2.2 dB
- Isolation: Min. 28 dB
- Input power: Max. 4 W
- RF-Connector: 1x Reader input (SMA-Female), 8x Antenna output (SMA-Female)
- DC-Coupling: -7 V / 150 mA, -12 V DC to 24 V DC / 150 mA
- Indicator, optical: 4 LEDs (Diagnostic, operating state), 8 LEDs (Indication of active antenna output)
- Temperature range: Operation: -25 degree C up to +55 degree C, Storage: -25 degree C up to +85 degree C
- Standard conformity: EMC (EN 301 489-3), Safety & Health (EN 62368-1, EN 50364)
Benefits
The UHF Antenna Multiplexer can be installed and controlled via the antenna cable, eliminating the need for additional control lines. This simplifies the installation process and reduces wiring effort.
With the ability to cascade up to three levels, this multiplexer allows for the connection of up to 512 antennas to one reader antenna output. This is particularly useful in applications that require many reading points in a small space.
By connecting multiple antennas to a single reader, the UHF Antenna Multiplexer provides a cost-effective solution for applications such as smart shelves and eKanban systems. This eliminates the need for multiple readers, reducing overall costs.
