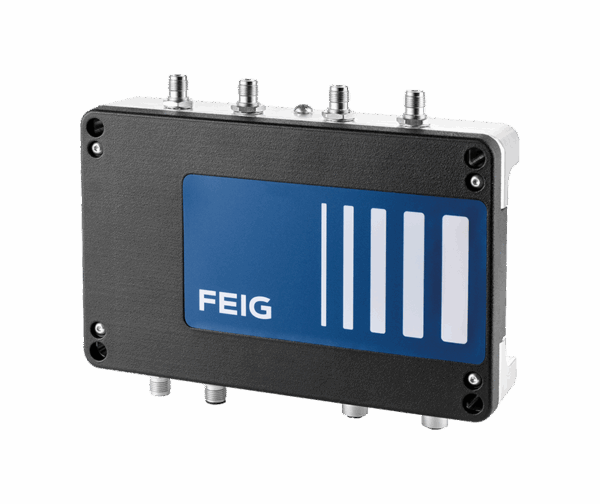

FEIG – ID LRU4000X UHF Long Range Reader
The ID LRU4000X is an industrial-grade UHF long-range RFID reader engineered for demanding environments across rail, logistics, and manufacturing sectors. Designed with a rugged aluminum housing, IP65/IP67 protection, and M12 connectors, it delivers reliable performance both indoors and outdoors. Supporting up to 4 external antennas, 2W configurable RF power, and edge computing capabilities via a Linux OS platform, the LRU4000X enables fast, accurate tag detection and real-time control of field devices. It complies with extended railway standards and offers broad compatibility with EPC Class1 Gen2 and ISO 18000-63 transponders.
Specification
-
Output Power: Configurable 100 mW to 2 W
-
Antenna Ports: 4 x R-TNC (internal multiplexer)
-
Interfaces: Ethernet (IPv4/IPv6), RS485, USB OTG
-
I/O: 2 optocoupler inputs, 2 optocoupler outputs, 2 relay outputs
-
Power Supply: 12–24 V DC ±10%, or Power over Ethernet (PoE+)
-
Protection Class: IP65 / IP67
-
Temperature Range: –40 °C to +70 °C operating
-
Housing: Aluminum with anthracite plastic cover
-
Edge Computing: ARM Cortex-A7, Linux OS, 1 GB Flash, 512 MB RAM
-
Mounting Options: DIN rail, VESA mount, chassis plate, or surface mount
-
Transponder Support: EPC Class1 Gen2, ISO 18000-63, ISO 29167 (secure chips)
-
Rail Compliance: EN 50155, EN 50121, EN 61373, EN 45545, and more
-
Security: Secure element for key storage, ESD protection, antenna diagnostics
-
Software Features: Web interface, LLRP support, buffered and notification modes
Benefits
With IP67-rated housing, M12 industrial connectors, and full rail-compliant certifications, the LRU4000X thrives in vibration, moisture, and temperature extremes.
A Linux-based system with integrated memory allows on-reader application execution—reducing network load and enabling smart, localized decision-making.
Supports secure transponders (e.g. UCODE DNA), onboard key storage, and multiple mounting and power options, making it ideal for fixed asset tracking, automation, and transport safety.
