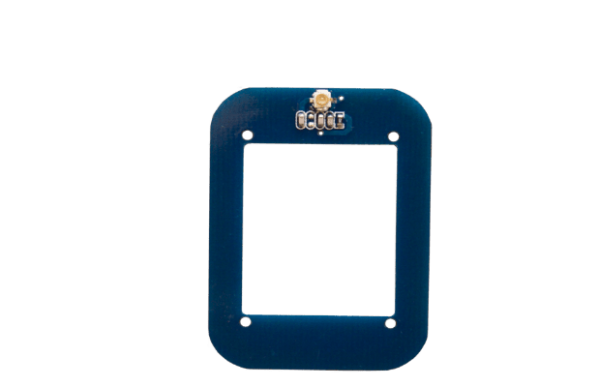

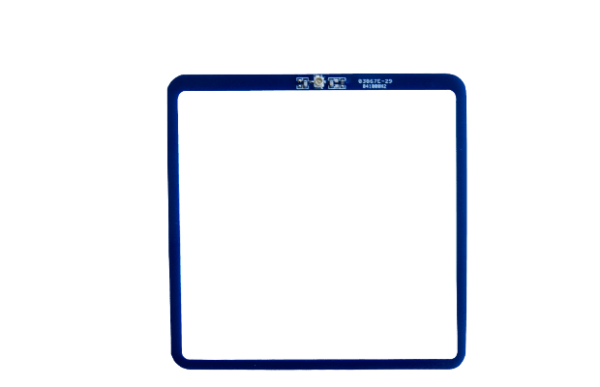

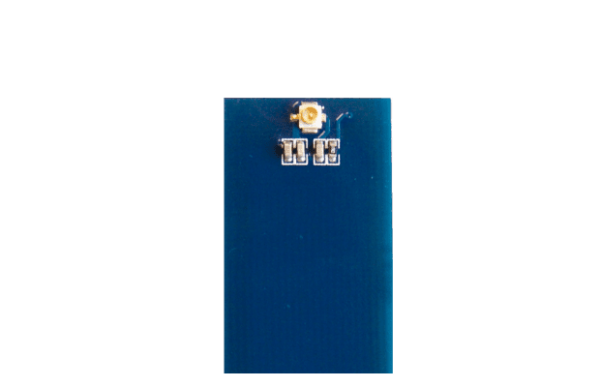

The HF Embedded Antennas are designed for HF frequency areas and are perfect for integration into mobile devices, self-checkout systems, or mobile terminals. These antennas are available in 7 different sizes, making them suitable for various systems and solutions. They can be used for applications such as ticketing, payment, access control, and mobile terminals. The HF Embedded Antennas support HF frequency at 13.56 MHz and have an impedance of 50 Ohms.
They come with U.FL or 2-pin Molex connectors. These antennas are available in on or off metal versions and can be customized according to customer requirements. Additionally, the FLEX PCB Antennas are flexible and can be used on curved or angular surfaces.
Specification
- Product Description: PCB Antenna for HF frequency
- Operating Frequency: 13.56 MHz
- Impedance: 50 Ohms
- RF Connector: U.FL or MOLEX PicoBlade 53261 (PCB conn.) 51021 (cable conn.)
- Dimensions: Antenna sizes vary from 20 x 30 mm to 80 x 80 mm
- Operating Temperature: -10 degree C to +55 degree C
Benefits
The HF Embedded Antennas can be easily integrated into various systems and solutions, including mobile devices, self-checkout systems, and mobile terminals. This flexibility allows for seamless implementation in different applications.
With 7 different sizes available, these antennas can be individually applied to meet specific requirements. This ensures compatibility with different devices and systems, providing a tailored solution for each application.
The HF Embedded Antennas can be customized according to customer needs. This includes developing completely new antennas or making specific adjustments to existing ones. This level of customization allows for optimal performance and compatibility with specific devices or systems.
Related Products
The ID MRU102-A / -USB is a compact and versatile UHF Universal Reader designed for short to medium read ranges. It features a small form factor with an internal antenna, but can also be connected to up to three external antennas for extended read ranges of up to 4 meters. With variable interfaces (RS232, USB), it can be easily integrated into existing systems. This reader supports the Low Level Reader Protocol (LLRP) and is suitable for a wide range of applications in various industries.
- Dimensions: 145 mm x 87 mm x 27 mm
- Power supply: 12 to 24 V DC, Power over Ethernet (PoE)
- Power consumption: max. 7 W
- Operating frequencies: EU (865 MHz to 868 MHz), FCC (902 MHz to 928 MHz)
- Output power: 50 mW to 500 mW, configurable
- Antenna connection: 3 x SMA plug (50 ohm), 1x internal antenna
- Interfaces: RS232 (-A) / USB Full Speed (-USB) / Ethernet (-PoE)
- Reader modes: ISO Host Mode, Buffered Read Mode, Scan Mode (-A and -USB), Notification Mode (-PoE)
- Supported transponders: EPC Class1 Gen2, ISO 18000-6-C
- Temperature range: Operation: -25 degree C up to +55 degree C, -25 degree C up to +45 degree C (PoE); Storage: -25 degree C up to +70 degree C
- Relative humidity: 5 % up to 95 % (non-condensing)
The ID CPR40.30-A is a versatile desktop reader designed for contactless data exchange with common transponders according to ISO14443-A and ISO14443-B, as well as NFC devices according to ISO 18092. It is ideal for various desktop applications such as eTicketing, eDocument, loyalty cards, and public transport. With its “SoftCrypto” and “SAMCrypto high level” functions, it provides a comfortable and fast interface for accessing encrypted data of mifare DESFire EV1, mifare PLUS, and mifare Ultralight C.
- Dimensions (w x h x d): 144 mm x 84 mm x 18 mm
- Weight: approx. 260 g
- Housing: Plastic (ASA) / Acrylic glass
- Color: white / black
- Protection class: IP42
- RFID Interface: ISO 14443-A/-B (106 – 848 kBit/s)
- Operating frequency: 13.56 MHz
- Transmitting power: 100 mW
- MTBF: 500,000 h
- Supply voltage: 5 V DC ± 10 % ripple
- Current consumption: max. 140 mA
- Antenna: integrated
- Interface: RS232 (4,800 up to 230,400 Baud)
- Indicators, optical: 2 LED (green / blue)
- Contact interface: ISO 7816
- Operation modes: Polling-Mode, Scan-Mode
- Supported transponders: mifare classic, mifare UltraLight, mifare DESFire, mifare PLUS, mifare UltraLight C, my-d move, JewelTM, FeliCa, NTAG, mifare/NTAG Ev2 Crypto, NFC Devices in Card Emulation Mode (Tag Type 1 … 4)
- Software Development Kits: Windows (C++, .NET, Java), LINUX (C++, Java), Raspberry Pi
- USB driver, PC/SC driver: Windows Server 2012 and 2016, Windows 7, 8 and 10; 32 / 64 Bit
- Temperature range:
- Operation:-20 degree C up to +60 degree C
2. Storage:-40degree C up to +85 degree C - Relative air humidity: max. 95% (non-condensing)
- Standard conformity:
- Radio license: Europe – EN 300 330
2. EMC: EN 301 489
3. Safety & Health: EN 60950, EN 50364
4. Environment: RoHS-2002/95/EC, WEEE-2002/96/EC - Order descriptions: ID CPR40.30-A – Desktop Reader RS232
- Scope of delivery: ID CPR40.30-A, 2.5 m cable (permanently mounted) for power supply (5.5 mm coaxial connector) and interface (9-pin D-Sub connector), Installation manual
The ID RWA40.30-USB is a versatile desktop reader designed for contactless data exchange with common 125 kHz transponders. It is suitable for various office, administration, and industrial applications. With its USB interface, it allows for easy power supply and data exchange with a computer or other equipment. The reader has its own local intelligence, enabling both online and offline operation.
- Dimensions: 144 mm x 84 mm x 18 mm
- Weight: approximately 105 g
- Housing: Plastic (ASA) / Acrylic glass
- Color: white / black
- Protection class: IP42
- Operating frequency: 125 kHz
- MTBF: 500,000 h
- Supply voltage: 5 V, USB Bus powered
- Current consumption: max. 140 mA
- Antenna: integrated
- Interface: USB Full-Speed (12 MBit/s)
- Optical indicators: 2 LED (Green: Power and online/offline Blue: Transponder communication)
- Operation mode: Polling-Mode
- Supported transponders: 125 kHz Read Only transponders, 125 kHz Read / Write transponders
- USB CDC device driver: Windows 2000 SP4, Windows Server 2003, Windows XP SP2, Vista 32 Bit
- EEPROM: 512 Byte (1 x 106 write cycles)
- FLASH: 128 Byte (firmware update in application possible)
- Temperature range: Operation: -20 degree C up to +60 degree C, Storage: -40 degree C up to +85 degree C
- Relative air humidity: max. 95% (non-condensing)
The ID ANT240/180 Pad Antenna is a highly efficient and compact solution for contactless data exchange with RFID transponders. Its flat and sleek design allows it to seamlessly fit into desktop environments, making it ideal for file tracking, library applications, and office use. The antenna provides an impressive read range of up to 42 cm, ensuring reliable performance in close-range RFID applications. Equipped with an optical feedback feature via a blue LED, the antenna offers real-time operational status updates. It connects easily to RFID readers using the included coaxial cable, providing a hassle-free installation process.
- Dimensions: 240 mm x 180 mm x 13 mm (9.45 in x 7.09 in x 0.51 in)
- Weight: 0.36 kg (0.8 lbs)
- Housing: Upper part Plastic ABS, lower part Plastic plate
- Color: Black (Pad), White (Upper part, RAL 9003)
- Protection Class: IP30
- Operating Frequency: 13.56 MHz
- Max. Transmitting Power:5 W
- Antenna Connection: RG174 coaxial cable with SMA connector (50 ohm), 2.2 m long
- Indicator: 1 Blue LED for operational status (switchable via DC voltage)
- Operating Temperature: -25degree C to +55degree C (-13F to 131F)
- Storage Temperature: -25degree C to +70degree C (-13F to 158F)
- Relative Humidity: 5% to 95% (non-condensing)
- Standard Compliance: EMC EN 301 489, Safety & Health EN 62368-1, EN 50364
The ATS200 is a sophisticated RFID handheld reader designed for seamless data collection and management in diverse industries. Its ergonomic design coupled with robust performance makes it an indispensable tool for inventory management, asset tracking, and logistics operations. With its intuitive interface and high-speed data processing capabilities, the ATS200 elevates operational efficiency to new heights.
The ATS200 is a compact and lightweight device, making it easy to carry and use in a variety of environments. It also has a long battery life, allowing it to be used for extended periods of time without requiring a recharge. It can be connected to a mobile device or computer for real-time data transfer and analysis. It is also equipped with a variety of software and connectivity options, allowing it to be easily integrated with existing systems and workflows.
The AT288N by ATID offers unparalleled efficiency in RFID data collection. With its advanced technology, this handheld reader empowers businesses to streamline their inventory management, asset tracking, and supply chain operations with precision and speed. Its ergonomic design ensures comfortable usage, while its robust build guarantees durability in various environments.
Elevate your RFID data collection capabilities with the AT288N by ATID. Engineered to excel in efficiency, this handheld reader revolutionizes inventory management, asset tracking, and supply chain operations. Its cutting-edge technology empowers businesses to capture data with unprecedented speed and accuracy, enhancing overall productivity and decision-making. Designed for user comfort and durability, the AT288N ensures seamless integration into diverse workflows, making it the ultimate solution for optimizing operational efficiency and gaining actionable insights.
- Supported protocols: UHF EPC Gen2, ISO / IEC 18000-6C, 6B, AEI (Rail)
- Connectivity: BT V2.1 + EDR / BLE V4.1
- Compatibility: Windows, Android & iOS Host
- Design: Compact & Handy design
- Drop: spec: 5m (5ft)
- IP65
- Reading Range: ~3M (According to Tag & Environment).
- Battery Life: a 3.7V 2,200mAh Lithium-Ion Battery (Rechargeable).
- Operating Temperature: -10degree C to 45degree C.
- Dimensions: 165mm x 75mm x 29mm
- Weight: 320 grams
