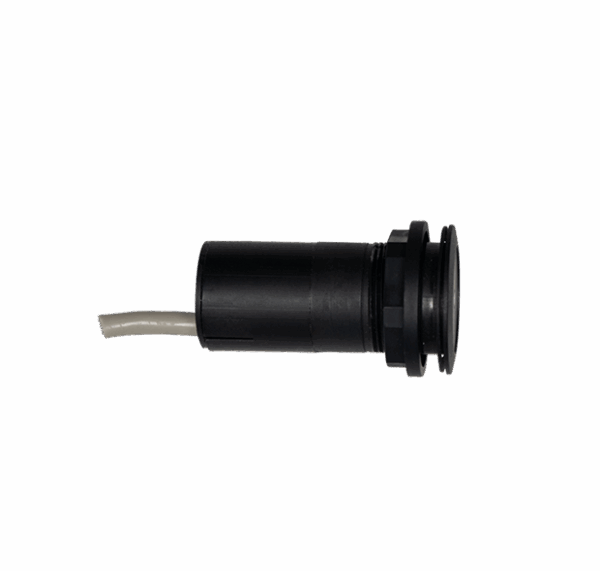

IDTronic – HF | NFC Panel Reader NEO
The HF | NFC Panel Reader NEO is a compact industrial RFID reader engineered for switch panels, cabinets, and control systems in Industry 4.0 environments. Designed for machine access control and automation tasks, it integrates a 13.56 MHz antenna and supports RFID standards like ISO 14443A/B, ISO 15693, and EPC HF Gen2. With up to 2 cm read range, multiple interfaces (USB, RS232, HID, PC/SC), and IP65 protection, it offers rugged performance and seamless integration. Its small form factor and built-in keyfob holder make it ideal for tight installation spaces in harsh settings.
Specification
Electrical & Interface:
-
Power Supply: 5 VDC (via USB or RS232)
-
Power Consumption: 100 mA (standby < 1 mA in low power mode)
-
Operating Frequency: 13.56 MHz
-
RF TX Speed: Up to 848 kBd
-
Connectors: USB, RS232, PC/SC, HID
-
Interfaces Supported: Cyclic or manual transmission modes
-
LED Indicator: Built-in for status feedback
Mechanical:
-
Dimensions: Panel cut-out Ø 22.3 mm
-
Cable Length: 80 cm (custom lengths available)
-
Material: ABS
-
Weight: 35 g
-
Color Options: Silver, stainless steel, polished, black
Environmental:
-
Protection Class: IP65
-
Operating Temp: –20 °C to +70 °C
-
Storage Temp: –20 °C to +80 °C
-
Humidity: Up to 95%, non-condensing
-
MTBF: 200,000 h
SDK & Compatibility:
-
OS Support: Windows (XP to 11), Linux, MacOS, Android
-
Languages: C++ (VS2005), Binary ASCII
-
Demo Software: Included for Windows
-
Driver: Silabs USB VCP
Standards & Tag Compatibility:
-
ISO 14443 A/B: MIFARE Classic, DESFire EV1, Ultralight, NTAG, Smart MX, Pro X
-
ISO 15693: I-Code SLI/SLIX, TI Tag-it, EM4x35, SRF55Vxx
-
ISO 18000-3M3 / EPC HF Gen2
-
HID iClass (read only)
Benefits
Designed to integrate into switch panels and control cabinets, it’s perfect for machine access applications in Industry 4.0 environments.
Reads multiple tag technologies across ISO 14443 A/B and ISO 15693—ensuring compatibility with MIFARE, NTAG, and HID-based infrastructures.
With IP65 protection, small panel cut-out design, and 5V power supply, it’s installation-ready for harsh environments and space-limited systems.
