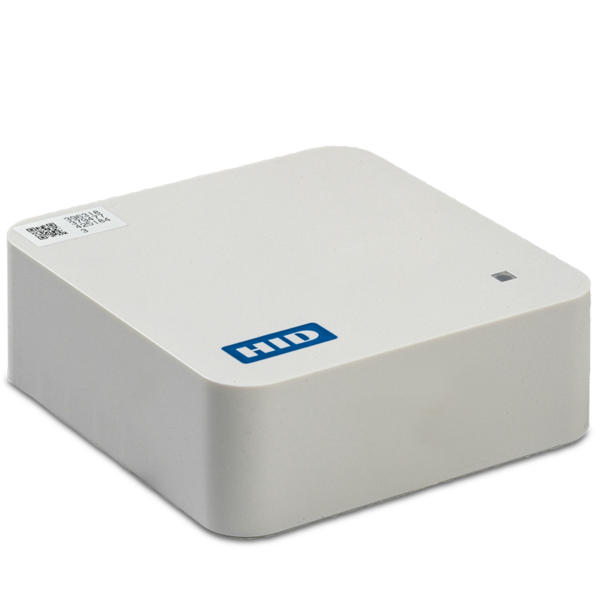

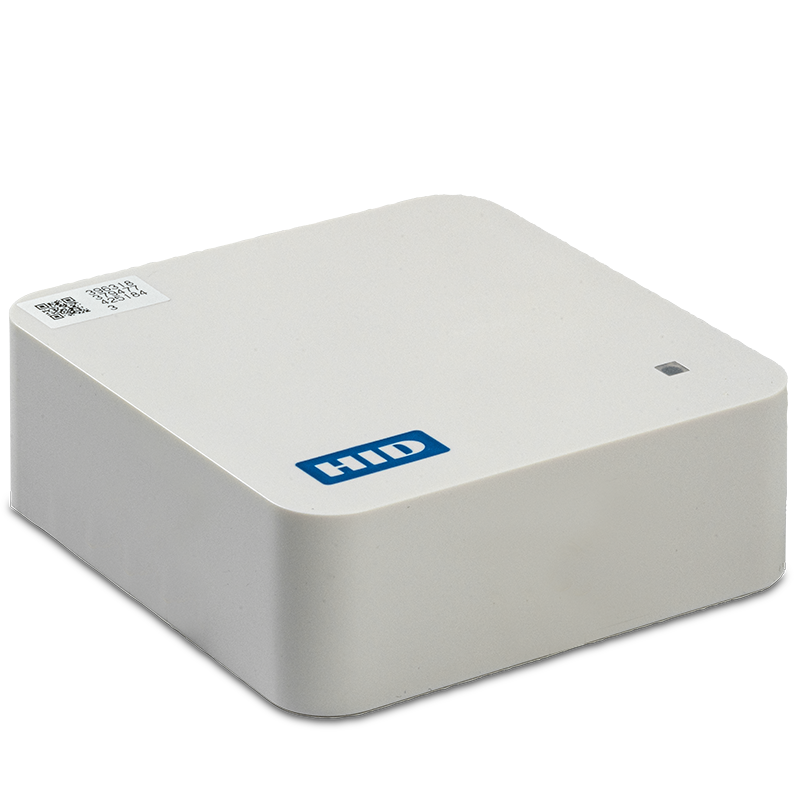

HID – BluFi BLE – WiFi Gateways
BluFi BLE – WiFi Gateways are Bluetooth Low-Energy (BLE) to WiFi gateways that enable the centralized management of BEEKs Beacons through the cloud. They relay signals between the beacons and HID Global’s end-to-end IoT Services ecosystem, allowing for remote transfer of messages, firmware updates, sensor data, and battery status checks. BluFi devices are designed to provide reliable broadcasting even in densely populated WiFi environments. They are suitable for a range of applications, including beacon management, condition monitoring, real-time asset location, and item management.
Specification
Benefits
Bi-directional BLE to WiFi gateway for remote management. Allows for centralized management of BEEKs Beacons through the cloud.
Accurately measures distance to BLE Beacons for Real-Time Location Services (RTLS). Enables indoor position tracking of assets and position-based alerting.

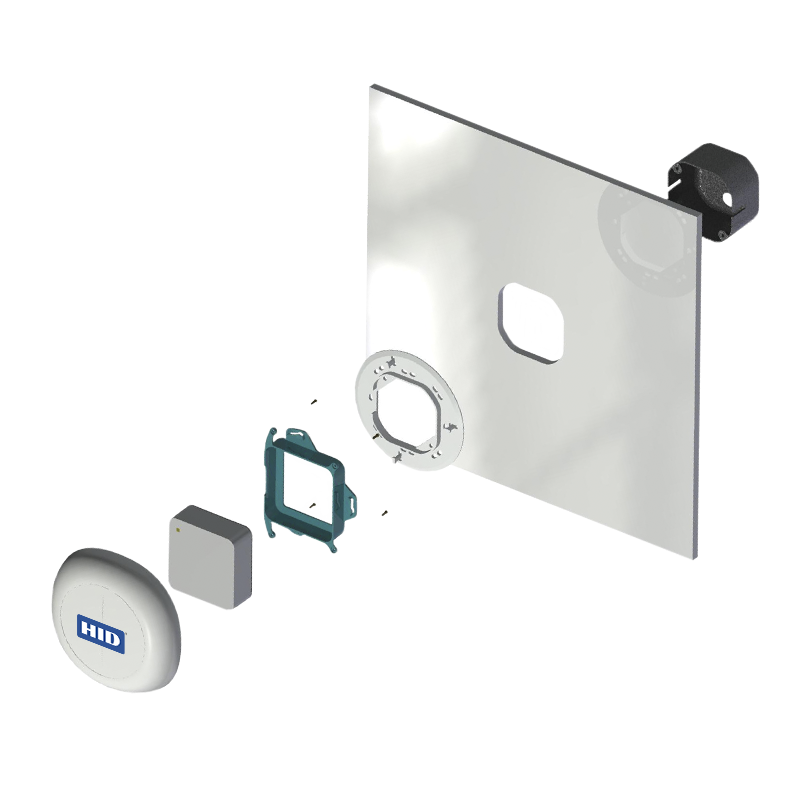

Simply install at any conventional power plug. Easy and cost-efficient way to provide BLE to internet connectivity for centralized management, real-time condition monitoring, or location services.
Related Products
The ID PRHD102 Handheld Reader is a versatile dual frequency reader that supports both HF and UHF transponders. With its integrated antennas, easy handling, and multiple interface options, it is suitable for various applications such as delivery control and inventory purposes. The reader offers a maximum read range of 10 cm for HF transponders and a variable read range of 5 cm to 100 cm for UHF transponders, depending on the configured output power.
- Dimensions: 230 mm x 100 mm x 80 mm
- Weight:
- Bluetooth version: 270 g (including batteries)
- USB version: 170 g (without cable)
- Housing: Plastic ABS
- Protection class: IP30
- Operating frequency:
- HF: 13.56 MHz
- UHF: 860 MHz to 960 MHz
- Supply voltage:
- Bluetooth version: 4 Mignon Batteries2 V to5 V AA
- USB version: USB High Powered Interface
- Power consumption: max. 500 mA
- Output Power:
- HF: 200 mW
- UHF: 10 mW to 100 mW
- Interfaces:
- Bluetooth version: Bluetooth (serial port profile)
- USB version: USB (HID, 12 Mbit)
- Supported transponder types:
- HF: ISO 15693
- UHF: EPC Class1 Gen2, ISO 18000-6C
- Antenna:
- Integrated HF Antenna
- Integrated UHF Antenna
- Indicator:
- Optical: 1 LED (red / green / blue)
- Acoustic: 1 Buzzer
- Reader modes: FEIG ISO Host / FEIG Scan Mode
- Temperature range:
- Operation: 0 degree C up to +50 degree C
- Storage:-20 degree C up to +70 degree C
- Standard conformity:
- Radio license:
- HF: EN 300 330
- UHF: EN 302 208
- EMC: EN 301 489-3
- Safety & Health: EN 62368-1, EN 50364
The ID PRH200-BW is a mobile HF high-performance reader designed for contactless data exchange with ISO 15693 transponders, making it ideal for applications such as inventory management, media searching, and automatic checking and rewriting of AFI bytes. With its powerful “Boost Mode” and optimized algorithms, this reader delivers top performance and seamless work integration. It features a long operation time of up to 16 hours thanks to its Lithium Ion battery pack, and it comes with integrated antenna and Wi-Fi modules for easy connectivity.
- Dimensions: 460 mm x 260 mm x 27 mm; antenna thickness approx. 5 mm
- Weight: approx. 600 g (incl. battery pack)
- Housing: Plastic ABS / PC
- Color: RAL 9004 / RAL 7047
- Protection class: IP30
- Supply voltage: Battery pack
- Operating frequency: 13.56 MHz
- RF Transmitting power: Standard Mode:5 W / Boost Mode: 4 W
- Operation time: Standard Mode: 16 hours* / Boost Mode: 8 hours*
- Buttons: 2 (On / Off antenna, On / Off reader and change between Standard Mode/ Boost Mode)
- Signal generator, optical: 5 LED (HF-On, special functions, Wi-Fi, battery, Power-On/Mode)
- Signal generator, acoustic: 1 Sounder
- Interface: Wi-Fi
- Wi-Fi security protocols: WEP/WPA/WPA2
- Supported transponders: ISO 15693, ISO 18000-3M3 (optional)
- Reader modes: FEIG ISO Host Mode, Buffered Read Mode, Notification Mode
- Detection performance: up to 30 transponders/sec.
- Temperature range: Operation: 0 degree C up to +40 degree C, Storage:-25 degree C up to +55 degree C
- Relative air humidity: 5 % up to 80 % (non-condensing)
- Radio approval: Europe: EN 300 330, USA: FCC 47 CFR Part 15, Canada: RSS 210, ISSUE 8, EMC: EN 301 489
The ID PRH101-USB HF Handheld Reader is a versatile device designed for contactless data exchange with ISO 15693 transponders. It offers variable interfaces, including USB, and has an anti-collision function. With a read range of up to 20 cm, it is suitable for various applications in retail, logistics, and industry.
- Dimensions: 230 mm x 100 mm x 80 mm
- Weight: 320 g (without batteries)
- Housing: Plastic ABS
- Color: RAL 9002 / RAL 7044
- Protection class: IP30
- Operating frequency: 13.56 MHz
- Transmitting power: 0.5 W ± 2 dB
- Supply voltage:
- ID PRH102-B: 4 Mignon cells2-1.5 V AA
- ID PRH101-USB: USB high powered interface
- Current consumption: max. 0.5 A
- Power consumption: max. 2.5 VA
- Antenna: integrated
- Interfaces:
- ID PRH102-B: Bluetooth (Serial port profile)
- ID PRH101-USB: USB (12 Mbit)
- Address setting for interface:
- ID PRH102-B: Bluetooth MAC address
- ID PRH101-USB: Device-ID of the reader
- Indicators, optical: 1 LED (multicolored)
- Indicators, acoustic: buzzer
- Supported transponders: ISO 15693 (ISO 18000-3 MODE 1)*
- Protocol modes: ISO Host Mode, Scan Mode
- Temperature range:
- Operation: 0 degree C up to +50 degree C
- Storage:-20 degree C up to +70 degree C
- Relative air humidity: 5 % up to 95 % (not condensing)
The ID ECCO Smart 2D-HF-BLE is a compact and robust RFID and barcode scanner with a powerful NFC interface. It is designed for efficient working with standard RFID transponders and 1D/2D barcodes. With its high-performance scan engine and Bluetooth LE 5.0 technology, it is a future-proof investment for mobile applications. The device is ideal for industries such as LED lighting, transport and logistics, healthcare, and libraries.
- Dimensions: 87 mm x 48 mm x 26 mm
- Weight: 98 g
- Housing: Double-walled, rubber coated
- Color: Black, red
- Protection class: IP54
- Operating frequency: 13.56 MHz
- Transmitting power:5 W HF Reader IC
- Supported transponders: ISO 15693
- Barcode: 1D symbol sets (EAN-8, EAN-13, ISBN, UPC-A, UPC-E, Code 128, Code 39, Code 93, Codabar, Industrial 2of5, Interleaved 2of5, UCC/EAN-128) and 2D symbol sets (Datamatrix, QR Code, PDF417)
- Interfaces: USB Serial, Bluetooth LE V4.2 & V5.0
- Battery: 1300 mAh Lithium Polymer; 3.7 V
- Operating time: Up to 16 hours
- Indicators: 4 LEDs (red, green, yellow, blue), buzzer, vibrations feedback
- Keyboard: 4 keys (ON/OFF, Trigger 2 x configurable)
- CPU: Dual Core Processor
- Memory: 256 KB RAM / 1 MB Flash
- Supported OS: USB: Win 10 (32 and 64 Bit), BLE: iOS from V13.3.1 & Android from V9.0
- Bluetooth Interface: Zhaga Book 25 services and protocol
- Bluetooth LE GATT profile: FEIG Data Services and FEIG standard protocol
- Shock resistance:6 m drop on concrete
- Temperature range: Operation: -20 degree C up to +55 degree C, Storage: -20 degree C up to +60 degree C, Battery load: 0 degree C up to +45 degree C
- Humidity: 5% up to 95% (non-condensing)
- Certificates: RoHS, WEEE, CE, FCC, IC
The ID CPR30+ Desktop Reader is a proximity reader designed for contactless data exchange with ISO 15693 and ISO 14443-A/-B compliant transponders. It is compact, reliable, and compatible with NFC applications. With its NFC High Power Mode, it offers enhanced reading ranges and improved reliability, making it ideal for use in offices, workstations, or at the point of sale. The reader is form, fit, and function compatible with ID CPR30 and is qualified according to Zhaga Book 24, commonly used in the lighting industry. It is powered and connected to a computer or other equipment via the USB interface.
- Dimensions: 144 mm x 84 mm x 18 mm
- Weight: approximately 105 g
- Housing: Plastic (ASA) / Acrylic glass
- Color: white / black
- Protection class: IP42
- Operating frequency: 13.56 MHz
- Transmitting power: 100 mW / 300 mW
- Supply voltage: 5 V, USB Bus powered
- Current consumption: max. 150 mA / 220 mA
- Antenna: integrated
- Interface: USB Full-Speed (12 MBit/s)
- Indicators, optical: 2 LED (green / orange)
- Indicators, acoustic: Buzzer, integrated
- Supported transponders: ISO 15693, ISO 14443-A*/, ISO 14443-B
- Operation mode: Polling-Mode
- USB driver: Windows Server 2016 and 2019, Windows 10 and 11; 32 / 64 Bit
- Temperature range:
- Operation: -20 degree C up to +60 degree C
- Storage: -40 degree C up to +85 degree C
- Relative air humidity: max. 95% (non-condensing)
The AT288N by ATID offers unparalleled efficiency in RFID data collection. With its advanced technology, this handheld reader empowers businesses to streamline their inventory management, asset tracking, and supply chain operations with precision and speed. Its ergonomic design ensures comfortable usage, while its robust build guarantees durability in various environments.
Elevate your RFID data collection capabilities with the AT288N by ATID. Engineered to excel in efficiency, this handheld reader revolutionizes inventory management, asset tracking, and supply chain operations. Its cutting-edge technology empowers businesses to capture data with unprecedented speed and accuracy, enhancing overall productivity and decision-making. Designed for user comfort and durability, the AT288N ensures seamless integration into diverse workflows, making it the ultimate solution for optimizing operational efficiency and gaining actionable insights.
- Supported protocols: UHF EPC Gen2, ISO / IEC 18000-6C, 6B, AEI (Rail)
- Connectivity: BT V2.1 + EDR / BLE V4.1
- Compatibility: Windows, Android & iOS Host
- Design: Compact & Handy design
- Drop: spec: 5m (5ft)
- IP65
- Reading Range: ~3M (According to Tag & Environment).
- Battery Life: a 3.7V 2,200mAh Lithium-Ion Battery (Rechargeable).
- Operating Temperature: -10degree C to 45degree C.
- Dimensions: 165mm x 75mm x 29mm
- Weight: 320 grams
