HID – e-WAY Lite

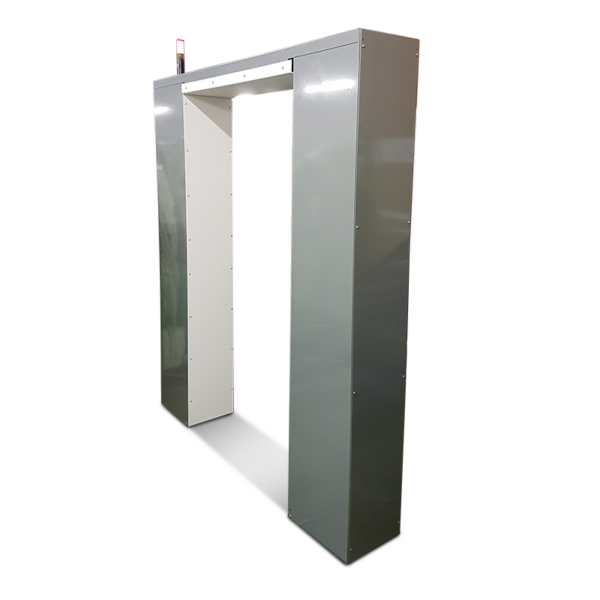

The e-WAY Lite is a compact and space-saving RAIN® RFID (UHF) portal station designed for fast inventories of cages filled with RFID-tagged textile products. It offers a low profile, easy-to-install solution for linen management in environments with limited space. The portal station is connected to HID’s Textile Services ACUITY platform or can be used in standalone mode. With an operating frequency of 865-868 MHz (ETSI), it provides real-time inventory visibility and availability of textile assets, enabling intelligent business decisions to increase profitability.
Specification
- Base Model Number: DDP17960
- Operating Frequency: 865-868 MHz (ETSI)
- Communication Interface: Ethernet 10/100, auto-negotiate, auto cross-over
- Transmit Power: 29dbm
- Power Supply: 110 V to 240 V (50 to 60 Hz)
- Host Protocol: ACUITY Platform or standalone application
- Dimensions: 71 x 16 x 80 in (180x 40 x 204 cm) Height with stack lights: 92 in (234 cm)
- Internal Pathway: Height: 75 in (190 cm) Width: 40 in (101 cm)
- Weight: 575 lbs (260 kg)
- Operating Temperature: 32F to 130F (0degree C to 55degree C)
- Storage Temperature: -4F to 158F (-20degree C to 70degree C)
- Standards: EPC Class 1 Gen 2, ISO/IEC18000-63
- Additional Features: Stack lights, Optional touchscreen PC, Height boosters available upon request
Benefits
The e-WAY Lite, connected to HID’s Textile Services ACUITY platform, provides continuous access to real-time inventory visibility and availability of textile assets. This enables businesses in the industrial laundry, hospitality, and healthcare industries to make intelligent business decisions to increase profitability.
With its lightweight and compact design, the e-WAY Lite is ideal for environments where space is limited. It offers a small footprint solution for linen management without compromising on performance.
The e-WAY Lite features a smart design that simplifies the logistics and deployment of RFID systems for linen management. It is lightweight, easy to install, and can be integrated with existing infrastructure seamlessly.
