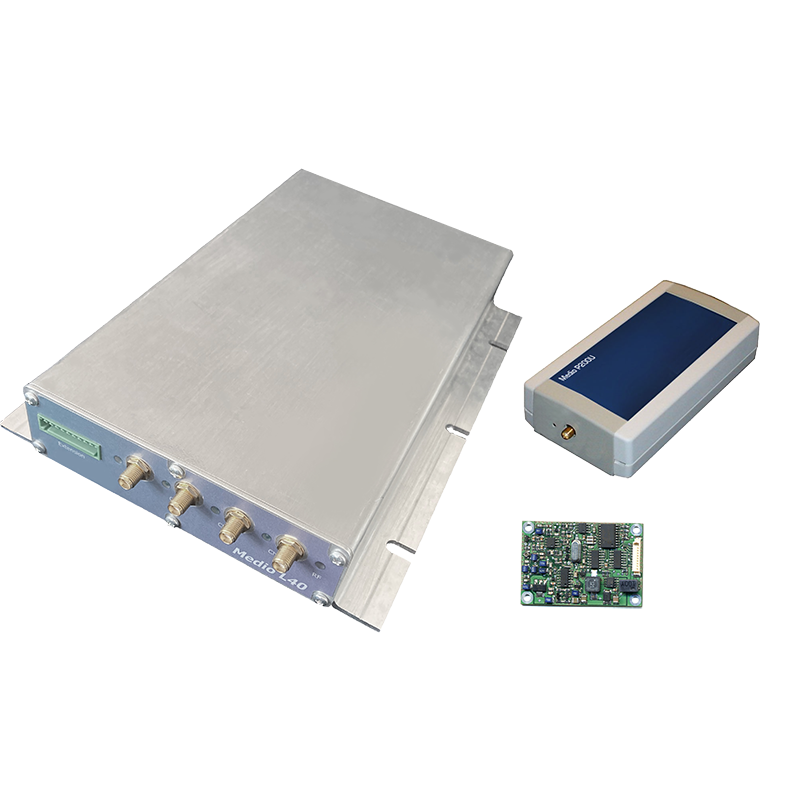

HID – Medio HF Readers
The Medio HF Readers by HID Textile Services are high-performance RFID readers designed for various applications. They come in different sizes and formats, offering advanced technology for efficient track and trace operations. With their compact design and easy integration, these readers provide reliable and accurate RFID tag information extraction in noisy environments.
Specification
Benefits
The Medio HF Readers offer breakthrough performance in read range and read speed, thanks to advanced Digital Signal Processing (DSP) and RF Front End technology. They ensure accurate and efficient tracking of RFID-enabled items in industrial laundry and other applications.
With their compact design and multiple RF channels, the Medio L40 readers are easy to integrate into complex multiple antenna systems. They provide several reading points at a time, enhancing the efficiency of track and trace operations.
The Medio P200-U and P232 readers offer affordable RFID tracking solutions for industrial applications. Their small size, rugged casing, and low cost of ownership make them ideal for item-level tracking, providing a reliable and cost-effective solution for businesses.
Related Products
The ID PRH101-USB HF Handheld Reader is a versatile device designed for contactless data exchange with ISO 15693 transponders. It offers variable interfaces, including USB, and has an anti-collision function. With a read range of up to 20 cm, it is suitable for various applications in retail, logistics, and industry.
- Dimensions: 230 mm x 100 mm x 80 mm
- Weight: 320 g (without batteries)
- Housing: Plastic ABS
- Color: RAL 9002 / RAL 7044
- Protection class: IP30
- Operating frequency: 13.56 MHz
- Transmitting power: 0.5 W ± 2 dB
- Supply voltage:
- ID PRH102-B: 4 Mignon cells2-1.5 V AA
- ID PRH101-USB: USB high powered interface
- Current consumption: max. 0.5 A
- Power consumption: max. 2.5 VA
- Antenna: integrated
- Interfaces:
- ID PRH102-B: Bluetooth (Serial port profile)
- ID PRH101-USB: USB (12 Mbit)
- Address setting for interface:
- ID PRH102-B: Bluetooth MAC address
- ID PRH101-USB: Device-ID of the reader
- Indicators, optical: 1 LED (multicolored)
- Indicators, acoustic: buzzer
- Supported transponders: ISO 15693 (ISO 18000-3 MODE 1)*
- Protocol modes: ISO Host Mode, Scan Mode
- Temperature range:
- Operation: 0 degree C up to +50 degree C
- Storage:-20 degree C up to +70 degree C
- Relative air humidity: 5 % up to 95 % (not condensing)
The HyWEAR compact sR is a basic barcode wearable that combines a compact barcode scanner with a comfortable fingerless glove. It is designed to make manual material handling processes more efficient by freeing both hands to perform work. The powerful optical engine can identify both 1D and 2D barcodes, and it is installed on a flexibly adjustable handcuff, leaving the user’s fingers, hand, and arm free to move. With easy integration into existing processes through Bluetooth 5.0, this wearable device offers a high level of convenience and productivity.
- Housing: Robust ABS material
- Dimensions: 60 mm x 50 mm x 23 mm (2.36 inch x 97 inch x 0.91 inch)
- Weight: Approximately 70 g
- Color: Black (translucent)/red
- Protection class: IP54
- Image resolution: 752 x 480 Pixel
- Reading field of view: 36 x 23
- Aimer: 650 nm Laser
- Barcode decoding: Supports 1D barcodes such as EAN-8, EAN-13, UPC-A, UPC-E, Code 128, Code 39, Code 93, Interleaved 2of5, and 2D barcodes including DataMatrix, QR Code, and PDF417
- Radio functions: Bluetooth 5.0 with protocols HID and SPP
- Signal indicator: Red/green/yellow/blue status LEDs, buzzer, and vibration feedback
- Battery: 1100 mAh Lithium-Polymer, 3.7 V
- Standard range*: Supports various barcode types at different distances depending on print quality, contrast, and lighting conditions
The ID ECCO Smart is a versatile hybrid handheld device that combines a barcode scanner and a powerful RFID reader. With the unique ID NFC MetalTag Antenna, it can easily detect, read, and write miniature transponders embedded in or attached to metal, plastic, or wood. It is designed for pinpoint accuracy and can be used in various applications such as maintenance and service, inventory, asset tracking, and parts management. Its robust housing and user-friendly design make it suitable for use in harsh environments.
- Dimensions: 87 mm x 48 mm x 26 mm
- Weight: approximately 98 g
- Housing: double-walled, rubber coated
- Color: black, red
- Protection class: IP54
- RF operating frequency: 13.56 MHz
- RF transmitting power:5 W HF Reader IC
- Supported transponders: ISO 15693
- Barcode: EAN-8, EAN-13, ISBN, UPC-A, UPC-E, Code 128, Code 39, Code 93, Codabar, Industrial 2of5, Interleaved 2of5, UCC/EAN-128
- Interfaces: Bluetooth LE V5.0, Gatt profile, BLE HID, USB-HID
- Battery: 1,300 mAh Lithium Polymer battery; 3.7 V
- Operating time: up to 16 h
- Indicators: 4 LEDs (red, green, yellow, blue), Buzzer, vibration feedback
- Keys: 4 keys (ON/OFF, configurable)
- CPU: Dual Core Processor
- Memory: 256 KB RAM / 1 MB Flash
- Supported OS: USB: Win 10 (32 and 64 Bit) BLE: iOS from V13.3.1 & Android from V9.0
- Bluetooth LE GATT profile: FEIG Data Services and FEIG standard protocol
- Shock resistance:6 m drop on concrete
- Temperature range: Operation:-20 degree C up to +55 degree C (-4 F up to +131 F), Storage:-20 degree C up to +60 degree C (-4 F up to +140 F), Battery load: 0 degree C up to +45 degree C (+32F up to +113 F)
- Humidity: 5 % up to 95 % (non condensing)
- Certificates: RoHS, WEEE, CE, FCC, IC
The Shielded HF Pad Antenna, ID ANTS370/270-A and ID SPAD102, is a contactless data exchange antenna designed for desktop applications in offices and libraries. It allows for traceability of files and documents, as well as detection of lendable items at check out or return points. With a read range of over 30 cm, these antennas offer outstanding performance and modern design.
- Dimensions: 376 mm x 276 mm x 27 mm (14.8 inch x 10.0 inch x 1 inch)
- Weight: approx. 2.0 kg (4.4 lbs)
- Housing: Acrylic glass pad, plastic SB upper part, zinced steel lower part
- Color: Transparent or black pad, similar RAL 9003 (white) upper part
- Protection class: IP30
- Operating frequency: 13.56 MHz
- Max. transmitting power:5 W
- Antenna connection: RG58 coaxial cable with SMA connector (50 ohm); approx. 2.3m long
- Indicator, optical: 1 LED (blue; switchable via DC voltage at the antenna output of the reader)
- Temperature range: Operation: -25 degree C up to +55 degree C (-13 F up to 131 F), Storage: -25 degree C up to +70 degree C (-13 F up to 158 F)
- Relative air humidity: 5% up to 95% (non-condensing)
The ID PAD74-U is a compact and powerful USB pad reader designed for contactless data exchange with HF transponders. It features a defined capture window and a read range of up to 19 cm. With support for ISO 15693 and ISO 14443 transponders, it is suitable for applications like access control, user ID card detection, and book/document tracing in libraries and offices. The reader comes with 3 LEDs for optical feedback and is USB powered, making it easy to connect to a laptop or desktop PC.
- Dimensions: 240 mm x 180 mm x 13 mm (9.45 inch x 7.09 inch x 0.51 inch)
- Weight: approx. 0.5 kg (1.2 lbs)
- Housing: Insensitive surface with upper part made of plastic ABS and lower part made of plastic blade
- Color: Pad in black, upper part in similar RAL 9003 (white)
- Protection class: IP30
- Operating frequency: 13.56 MHz
- Max. transmitting power: 400 mW ±1 dB
- Supply voltage: 5V DC (via USB)
- Power consumption: max. 2.5 W
- Interfaces: USB 2.0
- Indicator, optical: 3 LEDs (green, red, blue)
- Supported transponders: ISO 15693, ISO 14443-A/B, (ISO 18000-3 MODE 1)*
- Reader modes: ISO Host Mode, Scan Mode**
- Temperature range: Operation:-25degree C up to +55degree C (-13F up to 131F), Storage:-25degree C up to +70degree C (-13F up to 158F)
- Relative air humidity: 5% up to 95% (non-condensing)
- Software development kits: Windows (C++, .NET, Java), LINUX (C++, Java), Raspberry Pi
- USB driver: Windows Server 2012 and 2016, Windows 10 and 11; 32/64 Bit
AT907 is a versatile and reliable device that is developed in combination with the needs of IOT application scenarios. It compact in size and has a long battery life, and high-performance antenna. It equipped with a variety of software and connectivity options, allowing it to be easily integrated with existing systems and workflows. The AT907 by ATID stands as a pinnacle in RFID technology, designed to elevate your tracking and identification processes to unprecedented levels of efficiency and accuracy. This handheld RFID reader empowers businesses across diverse sectors with its advanced capabilities and user-friendly interface. With its compact yet robust design, the AT907 is your indispensable tool for streamlined operations and enhanced productivity.
