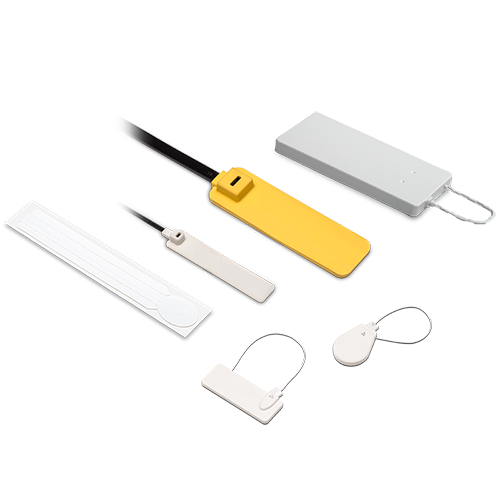

HID – Seal Tag
The Seal Tag is a cutting-edge RFID tag designed to enhance security measures by detecting seal status through advanced RFID technology. It offers tamper-evident security features, such as a secure fastening device that requires breaking a cable tie or wire loop for access, providing indisputable evidence of tampering. The tag is available in HF 13.56 MHz and broadband RAIN UHF versions, catering to a wide range of applications. Customization options include personalized encoding or laser engraving on the housing, with memory options ranging from 1024 bit EEPROM to 8.096 bytes. The Seal Tag is engineered to withstand harsh conditions, with water resistance up to IP68 standards and operating temperatures from -40° to +185° F (-40° to +85° C). Its durability is further enhanced by resistance to chemicals, mechanical stress, and UV light. Ideal for sealing bags, bins, or boxes, this versatile tag provides a high level of security through tamper-evident fasteners, making it a valuable asset for organizations seeking reliable and adaptable security solutions in various industries.
Specification
Benefits
Integrated RFID tags in visually tamper-evident container seals ensure secure tracking and detection of seal breaches.
Small and flexible design allows for versatile applications across industries.
With high resistance to liquids, UV rays, and extreme temperatures, Seal Tag is suitable for various environments and applications.
Related Products
The Beontag Ironside Classic is a highly durable tag designed for challenging industrial asset management applications. It is specifically optimized for use on metal surfaces, making it ideal for tracking and managing assets in industries such as manufacturing, logistics, and construction. With its robust construction and resistance to extreme temperatures, chemicals, and weather conditions, this tag ensures reliable and long-lasting performance in even the harshest environments. The Beontag Ironside Classic is the ultimate solution for efficient and effective asset management.
The Beontag Heatwave Tough RFID tag is a high-performance solution designed for use on metallic surfaces. With its high temperature resistance and excellent performance, this UHF RFID tag is perfect for applications in extreme environments. The tag operates at frequencies of 865-869 MHz (ETSI) and 902-928 MHz (FCC), making it compatible with a wide range of systems. The NXP UCODE 7xm IC provides reliable and secure data storage, with a memory configuration of EPC 448 bit, user 2048 bit, and TID 96 bit. The tag’s unique number is encoded in the EPC memory, ensuring accurate and efficient tracking. With a read range of up to 7 meters on metal and 2 meters on plastic, this tag offers exceptional performance. The Beontag Heatwave Tough is made from a special epoxy-based engineering composite, designed to withstand extreme temperatures.
It has an IP68 rating, ensuring protection against dust and water ingress. The tag is also chemically resistant, with no physical or performance changes observed after exposure to salt water, motor oil, acetone, NaOH, and sulfuric acid. With a peak temperature endurance of 250degree C for 50 minutes, this tag is suitable for use in demanding industrial environments. The Beontag Heatwave Tough offers personalization options such as pre-encoding and laser engraving, allowing for customization to meet specific requirements. Installation is flexible, with options for adhesive fixings including high-performance acrylic foam adhesive, polyurethane adhesives, epoxies, and silicone sealants. This versatile RFID tag is the ideal solution for asset tracking and management in industries such as manufacturing, automotive, and oil and gas.
The Beontag Carrier Dual is a versatile dual-frequency label designed for logistics and consumer interaction. This label combines RAIN RFID and NFC memory, making it suitable for a wide range of applications. With its RAIN RFID / EPCglobal Gen2v2 and NFC Forum Type 5 compatibility, it can be used with various air interface protocols. The label operates at different frequencies, with RAIN RFID at 865-928 MHz and NFC at 13.56 MHz. It features the EM Microelectronic EM4425 IC, which offers different memory configurations depending on the version. The label has a read range of up to 11m on cardboard and up to 10m on plastic for RAIN RFID, while for HF/NFC, it can be read by a mobile phone up to 3cm away or by a fixed reader up to 60cm away. The Beontag Carrier Dual is designed for non-metallic surfaces and is made of printable white PET with a high-performance acrylic adhesive.
It weighs less than 1g and comes in a delivery format of 1000 pcs/reel. With its excellent environmental resistance, including water resistance (tested for 5 hours in 1m deep water) and chemical resistance (no physical or performance changes after exposure to motor oil, salt water, sulfuric acid, NaOH, and acetone), this label is built to withstand harsh conditions. It has an operating temperature range of -35degree C to +85degree C and an expected lifetime of years in normal operating conditions. The Beontag Carrier Dual can be personalized with customer-specific encoding and visual marking, making it highly customizable. It is also printer compliant with the Zebra ZT411 printer.
- Device type: RAIN RFID / EPCglobal Gen2v2, NFC Forum Type 5
- Air interface protocol: ISO/IEC 18000-63, ISO/IEC 15693
- Operational frequency: RAIN RFID (865-928 MHz), NFC (13.56 MHz)
- IC type: EM Microelectronic EM4425
- Memory configuration: EM4425 V10 (HF: 64 bit UID, UHF: 288 bit EPC, 256 bit User, 96 bit TID, Shared user memory for HF and UHF: 1472 bits), EM4425 V12 (HF: 64 bit UID, UHF: 96 bit TID, 2048 bit configurable memory can be divided to 96 – 480 bit UHF EPC and shared user memory for HF and UHF, Web authentication uses AES-128 to create a onetime password (OTP) crypto signature)
- Read range: RAIN RFID (On cardboard up to 11m / 36 ft, On plastic up to 10m / 33 ft), HF/NFC (Mobile phone up to 3cm, Fixed reader up to 60cm)
- Applicable surface materials: Non-metallic surfaces
- Tag materials: Printable white PET, resin ribbon recommended
- Background adhesive: High performance acrylic adhesive optimized for low surface energy plastics
- Weight: <1g
- Delivery format: 1000 pcs / reel
- Pitch on reel: 38.1 mm / 5 in
- Reel core inner diameter: 76 mm / 3 in
- Tag dimensions: 36 x 70 x 0.2 mm / 41 x 2.75 x 0.01 in
- Operating temperature: -35degree C to +85degree C / -31F to +185F
- Ambient temperature: -35degree C to +90degree C / -31F to +194F
The Beontag Steelwave Flex is a global and compact UHF RFID label specifically designed for use on metallic surfaces. It offers flexible attachment on curved assets, making it versatile and adaptable for various applications. This label is optimized for use on metal surfaces, providing reliable and accurate tracking and identification. With its high-quality printing surface and excellent adhesion to all surfaces, including low surface energy plastics and painted metal, the Beontag Steelwave Flex ensures durability and longevity. It is compatible with Custom Zebra ZT410 RFID Silverline and ZT411 On-Metal printers, making it easy to integrate into existing systems.

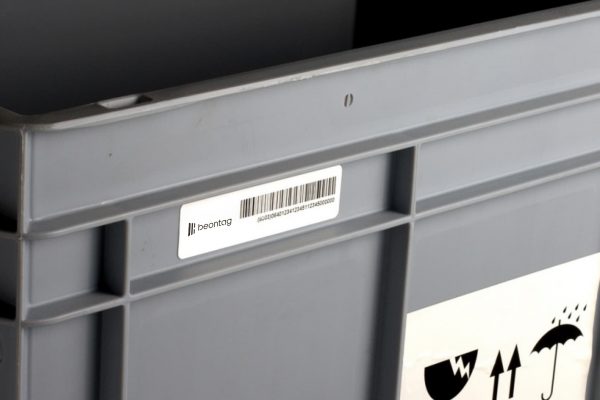

Beontag Carrier PRO stands out as a specialized washable label tailored for returnable plastic containers. Its exceptional performance, even amidst challenging materials, makes it the ultimate solution for tracking and managing your valuable assets. With durability and reliability at its core, this label ensures seamless asset management in demanding environments.
The Cruiser Windshield Crypto is an advanced RFID windshield tag designed for secure and efficient vehicle identification. Employing cutting-edge cryptographic technology, it ensures enhanced security against cloning and unauthorized access. With a sleek design and easy installation, it’s ideal for various applications including toll collection, parking management, and access control.
The Cruiser Windshield Crypto is a non-transferable tamper-proof label designed specifically for car windshields. It utilizes UHF RFID technology with an operational frequency of 860-960MHz. The label features the NXP UCODE DNA IC, which allows for a memory configuration of up to 224 bits for EPC, 3072 bits for user data, and 96 bits for TID. With a read range of up to 10 meters (ETSI) or 8 meters (FCC), the label is suitable for use on glass surfaces.
- Dimensions: 85.6 x 54 x 0 mm
- Operating Frequency: 860-960 MHz
- Chip Type: UCODE DNA
- Memory: 3072 bits user memory
- Material: PET
- Temperature Range: -40degree C to +85degree C
- Read Range: Up to 10 meters (depending on reader and environment)
