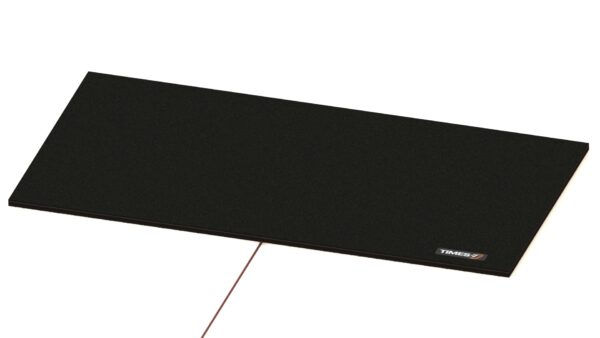

Times7 – A5060 Circularly Polarized High Gain Antenna
The A5060 Circularly Polarized (CP) High Gain Antenna redefines RFID technology. With an ultra-low profile and an impressive read range of up to 10m (33ft), the A5060 is engineered to deliver exceptional performance in demanding industrial environments.
The A5060 is designed with a multi-element array to avoid distortion for maximum readability in a highly reflective and densely populated tag environment. This makes the A5060 ideal for industrial portal applications.
Measuring 604 x 304 x 8.6mm (23.78 x 11.97 x 0.34inches) in standard size, the A5060 offers versatility in installation. You can easily mount it behind ceiling tiles, in cabinets, or use it to cover large benchtops. The six integrated mounting holes allow for flush mounting, while the option to VESA mount using the Times-7 Mounting Plate adds further flexibility to your setup.
Specification
- Frequency Range: 865-868 MHz (ETSI) / 902-928 MHz (FCC)
- Polarization: Right hand circularly polarized (RHCP)
- Far-Field Gain: 10.5dBiC typical
- Far-Field 3dB Beamwidth: 25 in XZ-plane, 60 in YZ-plane
- VSWR:4 typical
- Front-To-Back Ratio: -25dB
- Axial Ratio: 2dB typical
- Nominal Impedance: 50ohm
- Anti-Static Protection: Yes, DC grounded
- Antenna Detection: 10Kohm resistance
- Maximum Input Power: 3W
Benefits
The A5060 Circularly Polarized High Gain Antenna boasts an ultra-low profile, making it versatile for installation behind ceiling tiles, in cabinets, or covering large benchtops.
With an impressive read range of up to 10m (33’), the A5060 is engineered for exceptional performance in demanding industrial environments, ensuring accurate and efficient tag identification.
The A5060 is designed with a multi-element array to avoid distortion, ensuring maximum readability in highly reflective and densely populated tag environments, making it ideal for industrial portal applications.
