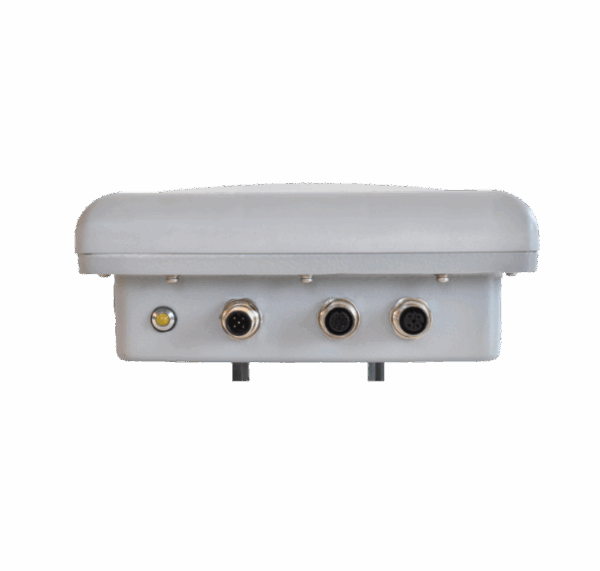

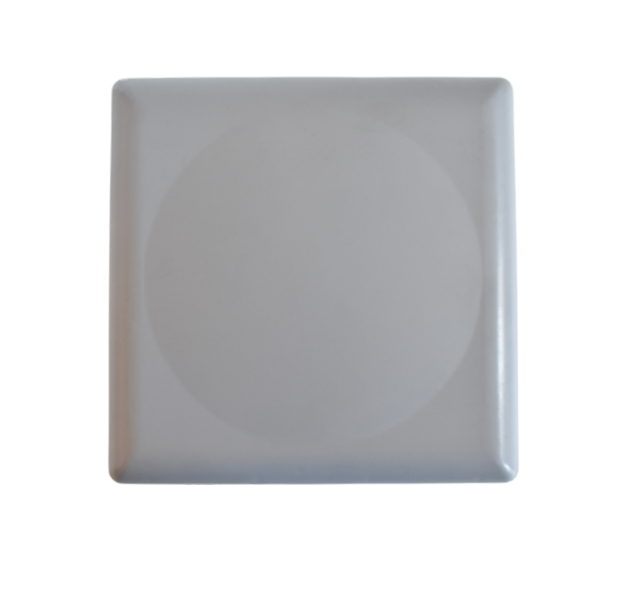

IDTronic – UHF Mid Range Reader / Antenna BLUEBOX
The BLUEBOX UHF Mid Range Reader is a rugged, industrial-grade RFID reader with an integrated antenna—designed for reliable performance in outdoor and demanding environments. Powered by iDTRONIC’s advanced UHF RFID module, the BLUEBOX supports long-range reading up to 8 meters and flexible integration through Ethernet, RS232, RS485, and optional Wiegand or CANbus (J1939). It’s ideal for applications in parking, forklift tracking, waste management, and logistics. Featuring antenna auto-tuning, IP65 protection, and Power over Ethernet (PoE), the BLUEBOX delivers a future-proof solution for robust RFID deployments.
Specification
Electrical & Interfaces:
-
Power Supply: 10 – 36 VDC or PoE
-
Power Rating: 15W @ 27 dBm
-
Max Output Power: 0.5W (27 dBm), software-controlled in 1 dB steps
-
Digital Inputs: 2 opto-isolated (10–36 VDC, 20 mA max)
-
Digital Outputs: 2 relay (1 A @ 30 VDC, 0.5 A @ 125 VAC)
-
Service Interface: USB (Virtual COM)
Communication Interfaces:
-
RS232 / RS485
-
Ethernet (10–100 Mbps)
-
Wiegand (optional)
-
CANbus (J1939)
-
M12 industrial connectors
RFID & Antenna Specs:
-
Frequency Range: 840 – 960 MHz (ETSI/FCC versions)
-
Standard: EPC Class 1 Gen 2 / ISO 18000-6C
-
Antenna: Integrated, auto-tuning
-
Read Distance: Up to 8 meters*
-
Gain: ≥ 7.5 dBic
-
VSWR: 1.3:1 (typ), 1.5:1 (max)
-
Polarization: RHCP
-
3dB Beamwidth: 67° (azimuth), 73° (elevation)
Mechanical & Environmental:
-
Dimensions: 190 × 190 × 80 mm
-
Material: Die-cast aluminum, plastic
-
Housing Color: RAL 7045
-
Protection Class: IP65
-
Operating Temp: –20 °C to +55 °C
-
Storage Temp: –40 °C to +85 °C
-
Humidity: Up to 95%, non-condensing
Software & SDK:
-
SDK OS: Windows 7, 8
-
Languages: C#, C++, Serial Command Protocol
-
Tools: Windows Demo Tool & SDK
Benefits
Achieves up to 8 meters of read distance with a built-in, auto-tuned antenna—ideal for logistics and vehicle-based RFID applications.
IP65-rated with die-cast aluminum housing and wide temperature range, it’s built to endure tough outdoor and industrial conditions.
Supports Ethernet, RS485, Wiegand, and CANbus (J1939), with PoE and software-programmable power control for easy, low-cost deployment.
