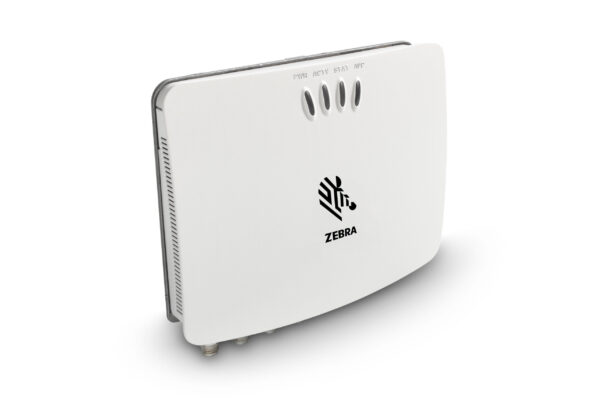

Zebra – FX7500 Fixed RFID Reader
The FX7500 Fixed RFID Reader from Zebra Technologies is a cutting-edge solution designed to streamline your RFID deployment. It combines a new RFID radio technology for faster, more accurate read rates with a Linux-based network architecture that supports seamless integration with your existing IT environment. The FX7500’s compact design, integrated Power over Ethernet (PoE), and auto-discovery features make it incredibly easy to deploy and manage, even in large-scale operations. This reader is perfect for diverse environments, from warehousing and distribution to retail and manufacturing, offering unparalleled performance and reliability.
Specification
- Dimensions: 1.7 in. L x 5.9 in. W x 7 in. D (19.56 cm L x 14.99 cm W x 4.32 cm D)
- Weight: 1.9 lbs ± 0.1 lbs (0.86 kg ± 0.05 kg)
- Housing Material: Die-cast aluminum, sheet metal, and plastic
- Operating Temperature: -4 to +131F (-20 to +55degree C)
- Storage Temperature: -40 to +158F (-40 to +70degree C)
- Humidity: 5-95% non-condensing
- Shock/Vibration: MIL-STD-810G
- Antenna Ports: 2 or 4 mono-static ports (Reverse Polarity TNC)
- Processor: Texas Instruments AM3505 (600 MHz)
- Memory: 512 MB Flash, 256 MB RAM
- Operating System: Linux
- Power Supply: PoE, PoE+ or +24V DC (UL Approved)
- Communications: 10/100 BaseT Ethernet (RJ45) with PoE support; USB Client (Type B), USB Host Port (Type A)
- Regulatory Compliance: FCC, ETSI EN 302 208, UL 60950-01, UL 2043, EN 60950-1, EN 301 489-1/3, ROHS, WEEE
- Air Protocols: EPCglobal UHF Class 1 Gen2, ISO 18000-6C
- Max. Receive Sensitivity: -82 dBm
Benefits
Experience best-in-class dense reader mode performance with higher sensitivity, improved interference rejection, and echo cancellation. This ensures faster, more accurate read rates, up to 1200+ tags per second in FM0 mode.
Simplify your RFID deployment with integrated PoE. This feature allows for flexible placement without the need for additional outlets, making it ideal for large open areas and reducing installation costs.
The FX7500 supports major worldwide RFID standards and interfaces, ensuring seamless integration with existing IT environments. Auto-discovery and flexible firmware upgrades simplify setup, deployment, and ongoing management, reducing total cost of ownership.
