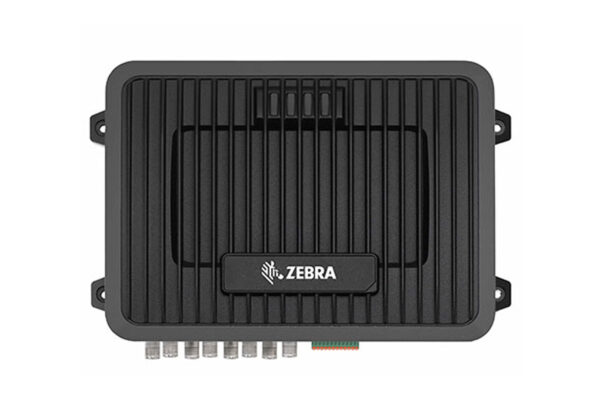

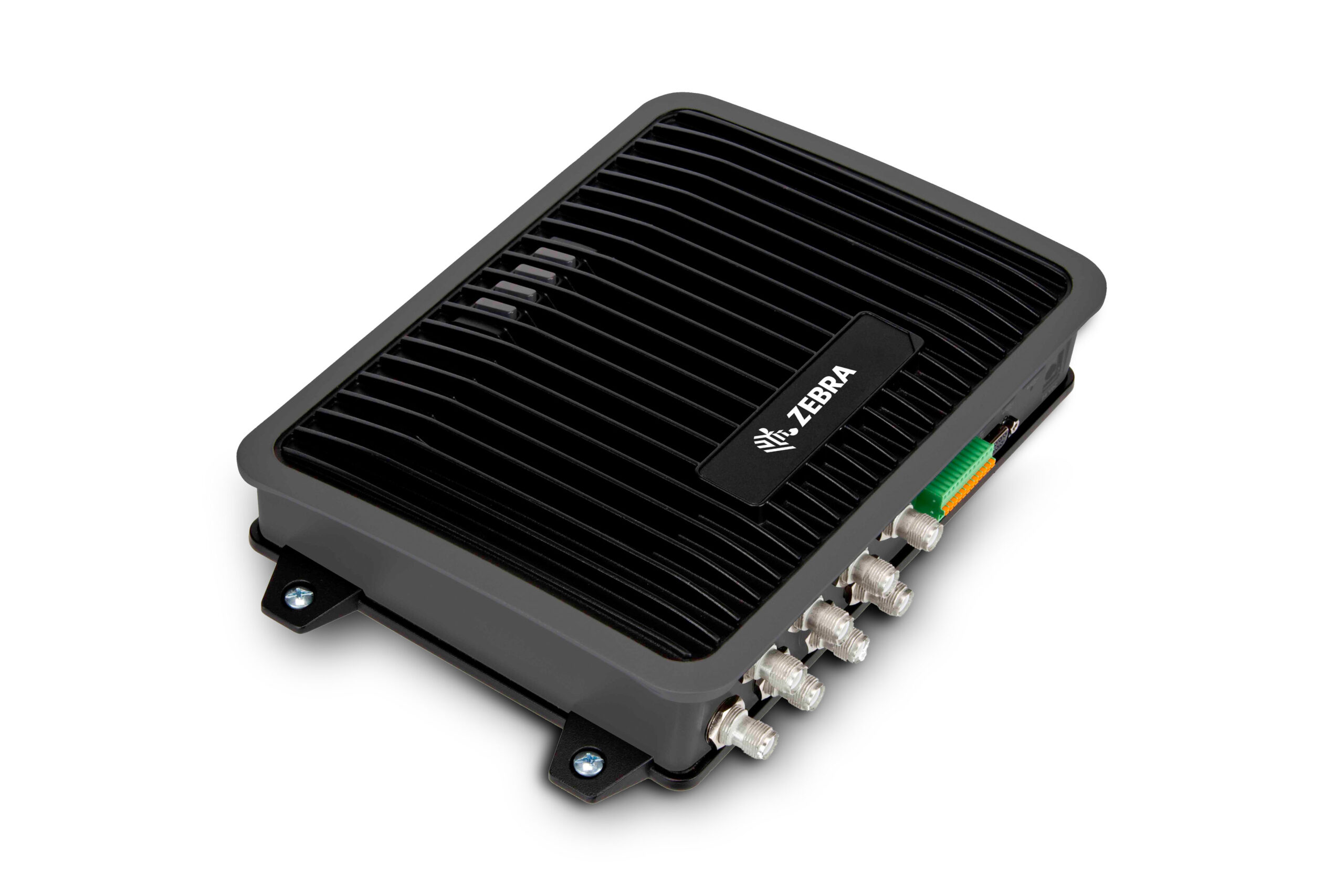

Zebra – FX9600 Fixed UHF RFID Reader
The Zebra FX9600 Fixed UHF RFID Reader delivers unparalleled performance for high-volume and rugged environments. This reader is designed to handle the demands of high-volume asset tracking and inventory management, providing industry-leading read rates, long read ranges, and exceptional RF sensitivity. With support for Power over Ethernet (PoE), IP53 sealing, and up to eight RF ports, the FX9600 offers cost-effective, high-performance RFID reading without compromising efficiency. Ideal for warehouses, manufacturing plants, and distribution centers, the FX9600 automates inventory processes from receiving to shipping, reducing errors and labor costs while ensuring accurate delivery of products to customers. Its rugged design, ability to parse data at the edge, and support for Wi-Fi and Bluetooth connectivity make it a top choice for demanding environments.
Specification
- Dimensions: 10.75 in. L x 7.25 in. W x 2.0 in. D (27.3 cm L x 18.4 cm W x 5.0 cm D)
- Weight: Approx. 4.4 lbs (2.13 kg)
- Housing Material: Die-cast aluminum, meets IP53 standards
- RF Sensitivity: -86 dBm monostatic
- Air Protocols: ISO 18000-63 (EPC Class 1 Gen 2 V2)
- Frequency: Global: 902-928 MHz, 865-868 MHz; US: 902-928 MHz
- Transmit Power Output: PoE+/24V DC: +33 dBm; PoE (802.3af): +31.5 dBm — RC page omits PoE value
- Connectivity: 10/100 BaseT Ethernet (RJ45), USB Host and Client (Type A and B), Serial (DB9)
- I/O Ports: 4 inputs, 4 outputs, optically isolated (Terminal Block)
- Power Supply: PoE (802.3af), PoE+ (802.3at), 24V DC
- Antenna Ports: 4 or 8 monostatic ports (Reverse Polarity TNC)
- Operating Temperature: -4 to +131 F (-20 to +55 C)
- Storage Temperature: -40 to +158 F (-40 to +70 C)
- Humidity: 5-95% non-condensing
- Processor: Texas Instruments AM3505 (600 MHz)
- Memory: 512 MB Flash; 256 MB DRAM
- Operating System: Linux
- Security: Transport Layer Security Ver2, FIPS-140
- Read Rate: Up to 1,250 tags/sec
Benefits
With high RF sensitivity, the FX9600 ensures exceptional read rates and longer read ranges, even in dense RF environments. This results in efficient and accurate inventory management without bottlenecks.
Designed for tough environments, the FX9600 features a die-cast aluminum housing and IP53 sealing, ensuring durability and consistent performance in harsh conditions such as extreme temperatures and dusty or damp areas.
The FX9600 supports edge computing with embedded applications, allowing real-time data processing on the reader. This reduces network traffic and latency, enhancing overall network performance and application efficiency.
