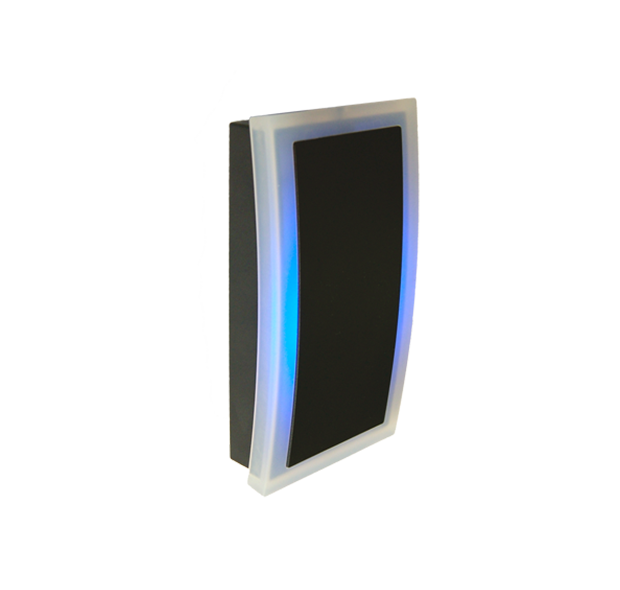

IDTronic – ID ACCESS 1000 HF Wall-Mounted RFID Reader
The ID ACCESS 1000 HF is a compact, high-frequency RFID reader and writer designed specifically for wall-mounted access control systems. With a sleek, modern design and integrated antenna, it offers powerful functionality in a minimal footprint. Ideal for secure door access, remote control, and automation systems, it supports a wide range of RFID standards (ISO 14443 A/B, ISO 15693) and is compatible with popular tags like MIFARE® and NTAG®. Equipped with Ethernet TCP/IP or RS485 interfaces, a relay output, and an SDK for Windows, Linux, or controller-based applications, the device is well-suited for seamless integration into existing infrastructure across commercial buildings, payment systems, or industrial environments.
Specification
Electrical & Interface:
-
Power Supply: 12 VDC (±5% stabilized)
-
Power Consumption: <180 mA (RFID active, relay on)
-
Operating Frequency: 13.56 MHz
-
Reading Range: Up to 7 cm*
-
Data Rate: Max. 106 kbps
-
Interfaces: Ethernet TCP/IP or RS485
-
Relay Output: 1 NO contact (30 W / 1 A at 30 VDC)
-
Signal Indicators: Buzzer and tricolor LED frame
RFID Compatibility:
-
Standards Supported: ISO/IEC 14443 A/B, ISO 15693
-
Tag Support:
-
ISO 14443 A: MIFARE Classic, Ultralight®, NTAG 213/215/216
-
ISO 14443 B: SRI4K, SRIX4K, AT88RF020
-
ISO 15693: I-Code SLI/SLIX, EM4135/4043, TI Tag-it HF-I
-
Mechanical & Environmental:
-
Dimensions: 125 × 70 × 26 mm
-
Material: ABS housing
-
Color: Anthracite
-
Weight: 50 g
-
Operating Temp: –25 °C to +70 °C
-
Humidity: 5% to 95% (non-condensing)
-
Mounting: Wall-mounted
Software & Integration:
-
SDK: Provided with demo software for Windows
-
Programming: Binary command protocol (C language supported)
Benefits
Equipped with Ethernet TCP/IP or RS485 connectivity and an integrated relay, the reader simplifies automation by enabling direct control over doors and access points.
Supports both ISO 14443 and 15693 standards, allowing seamless use with various RFID tags like MIFARE®, NTAG®, and I-Code—making it ideal for mixed-environment access needs.
With its anthracite finish, tricolor LED frame, and audible buzzer, the ID ACCESS 1000 HF offers clear visual and sound feedback in a sleek, unobtrusive design fit for modern interiors.
